1.限流之@SentinelResource

1.1 按资源名称限流+后续处理

启动Nacos成功

启动Sentinel成功

Module

1. 新建cloudalibaba-sentinel-service8401

2. pom.xml

1
2
3
4
5
6
<dependency>
    <groupId>com.atguigu.springcloud</groupId>
    <artifactId>cloud-api-commons</artifactId>
    <version>${project.version}</version>
</dependency>

3. application.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
server:
  port: 8401

spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:
        dashboard: localhost:8080
        port: 8719  #默认8719，假如被占用了会自动从8719开始依次+1扫描。直至找到未被占用的端口

management:
  endpoints:
    web:
      exposure:
        include: '*'

4. 主启动类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
package com.atguigu.springcloud.alibaba;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;


@EnableDiscoveryClient
@SpringBootApplication
public class MainApp8401
{
    public static void main(String[] args) {
        SpringApplication.run(MainApp8401.class, args);
    }

}

5. 业务类RateLimitController

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
package com.atguigu.springcloud.alibaba.controller;

import com.alibaba.csp.sentinel.annotation.SentinelResource;
import com.alibaba.csp.sentinel.slots.block.BlockException;

import com.atguigu.springcloud.alibaba.entities.CommonResult;
import com.atguigu.springcloud.alibaba.entities.Payment;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;


@RestController
public class RateLimitController
{
    @GetMapping("/byResource")
    @SentinelResource(value = "byResource",blockHandler = "handleException")
    public CommonResult byResource()
    {
        return new CommonResult(200,"按资源名称限流测试OK",new Payment(2020L,"serial001"));
    }
    public CommonResult handleException(BlockException exception)
    {
        return new CommonResult(444,exception.getClass().getCanonicalName()+"\t 服务不可用");
    }

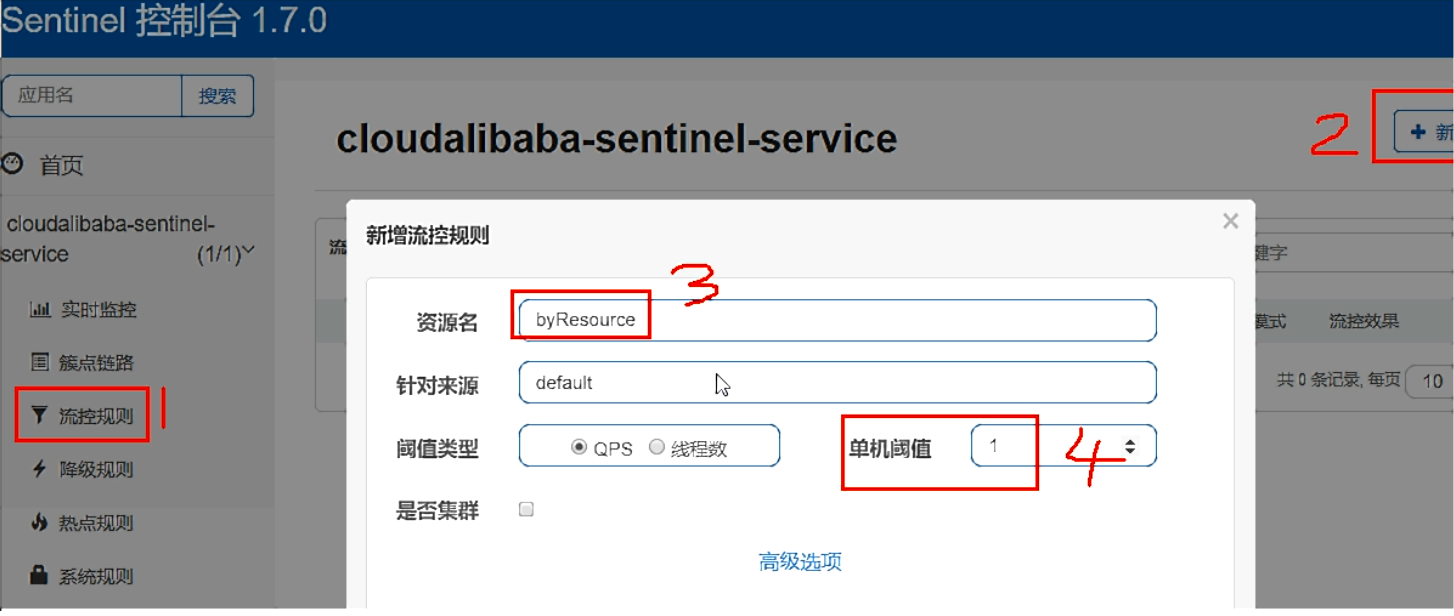

配置流控规则

表示1秒钟内查询次数大于1，就跑到我们自定义的处流，限流

测试

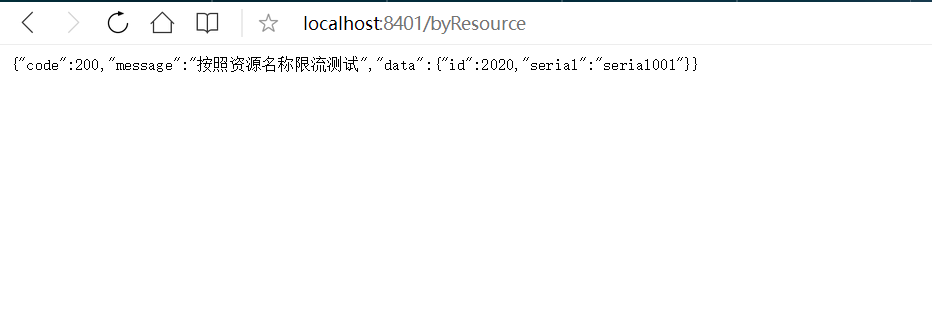

1秒钟点击1下，OK

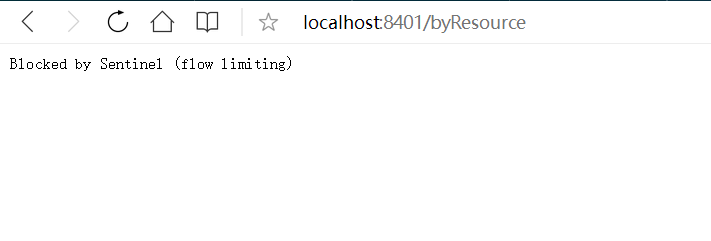

超过上述问题，疯狂点击，返回了自己定义的限流处理信息，限流发送

额外问题

此时关闭微服务8401看看

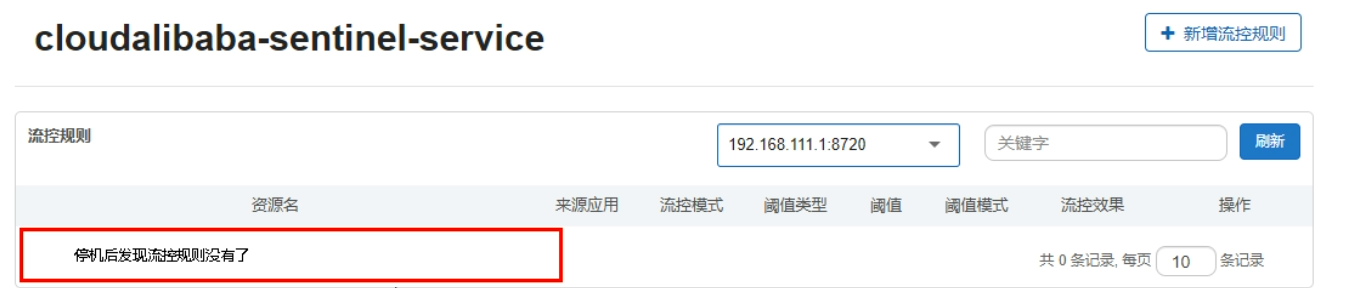

Sentinel控制台，流控规则消失了？？？？？

1.2 按照Url地址限流+后续处理

**通过访问的URL来限流，会返回Sentinel自带默认的限流处理信息
**

业务类RateLimitController

1
2
3
4
5
6
@GetMapping("/rateLimit/byUrl")
@SentinelResource(value = "byUrl")
public CommonResult byUrl()
{
    return new CommonResult(200,"按url限流测试OK",new Payment(2020L,"serial002"));
}

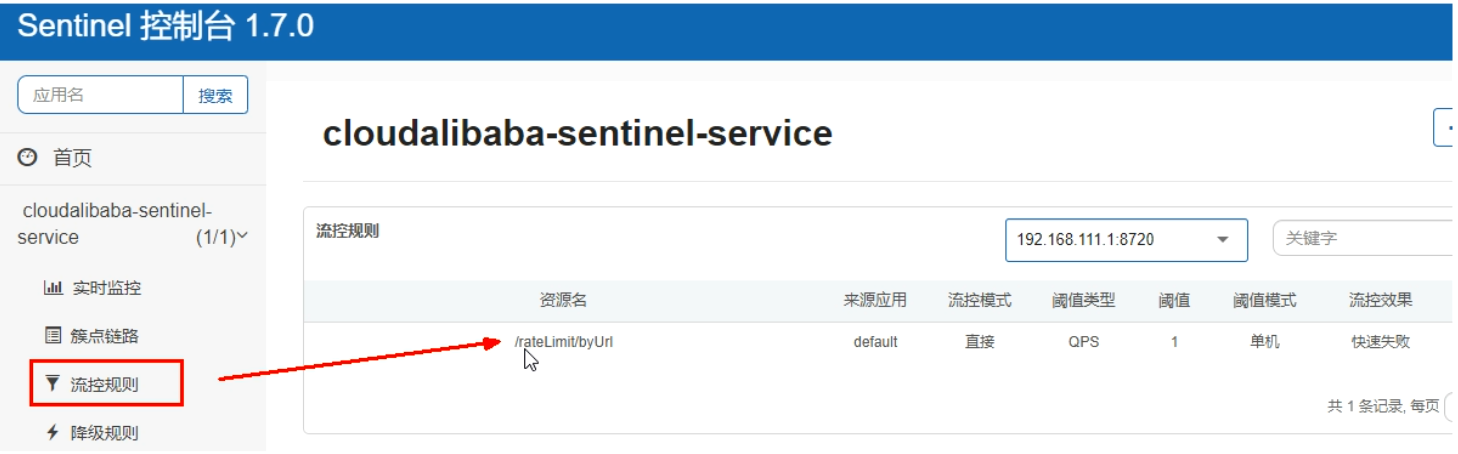

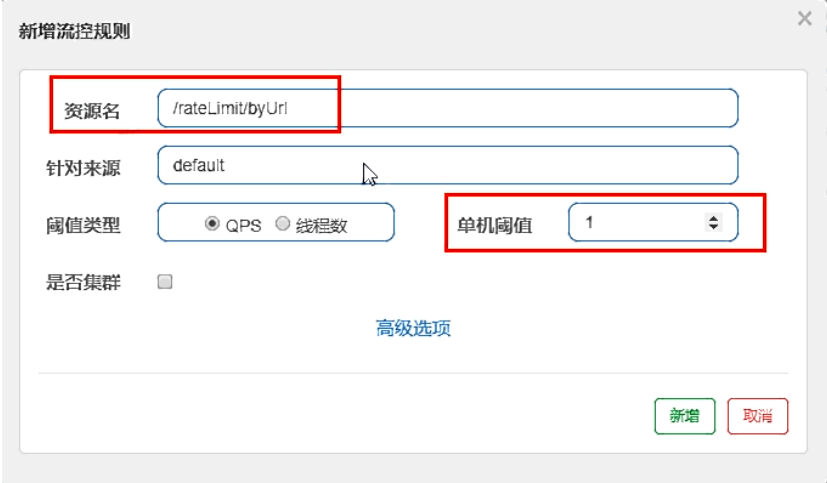

Sentinel控制台配置

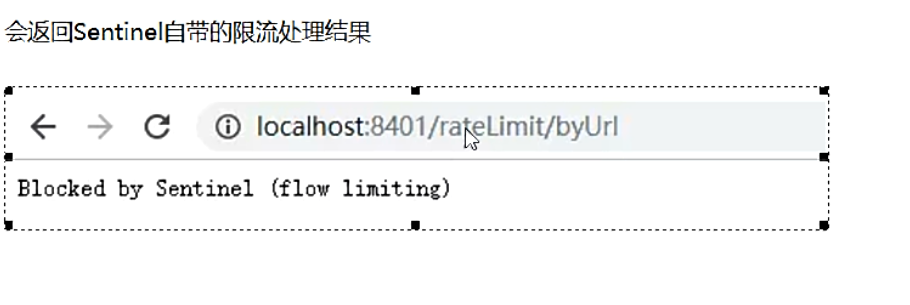

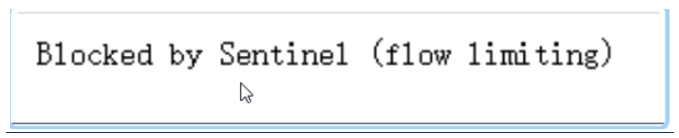

疯狂点击http://localhost:8401/rateLimit/byUrl

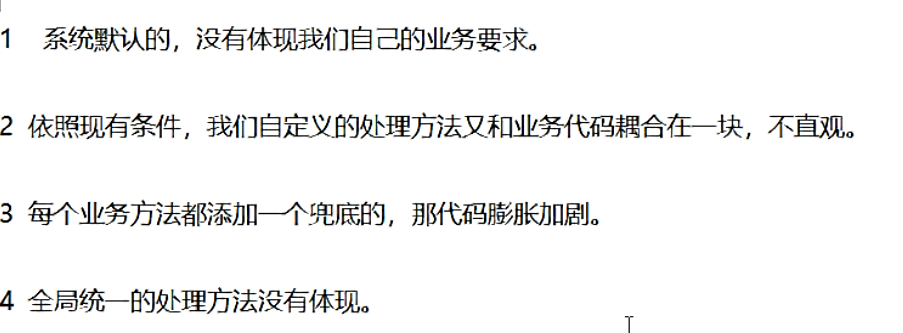

1.3上面兜底方法面临的问题

1.4 客户自定义限流处理逻辑

创建customerBlockHandler类用于自定义限流处理逻辑

1
2
3
4
5
6
7
8
9
10
public class CustomerBlockHandler {

    public static CommonResult handlerException(BlockException exception) {
        return  new CommonResult(444,"按照客户自定义的Glogal 全局异常处理 ---- 1",new Payment(2020L,"serial003"));
    }

    public static CommonResult handlerException2(BlockException exception) {
        return  new CommonResult(444,"按照客户自定义的Glogal 全局异常处理 ---- 2",new Payment(2020L,"serial003"));
    }
}

RateLimitController

1
2
3
4
5
6
7
8
@GetMapping("/rateLimit/customerBlockHandler")
@SentinelResource(value = "customerBlockHandler",
        blockHandlerClass = CustomerBlockHandler.class,
        blockHandler = "handlerException2")
public CommonResult customerBlockHandler()
{
    return new CommonResult(200,"按客戶自定义",new Payment(2020L,"serial003"));
}

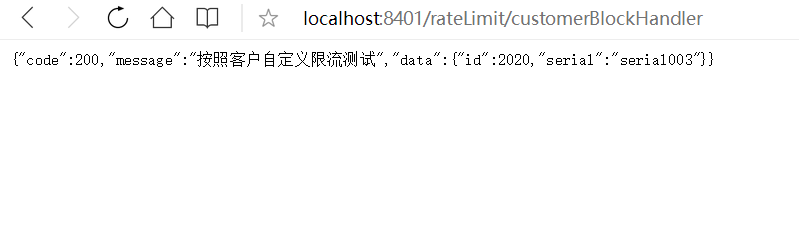

启动微服务后先调用一次

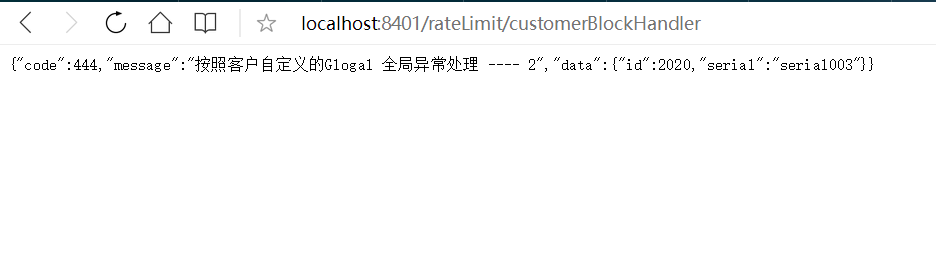

疯狂点击

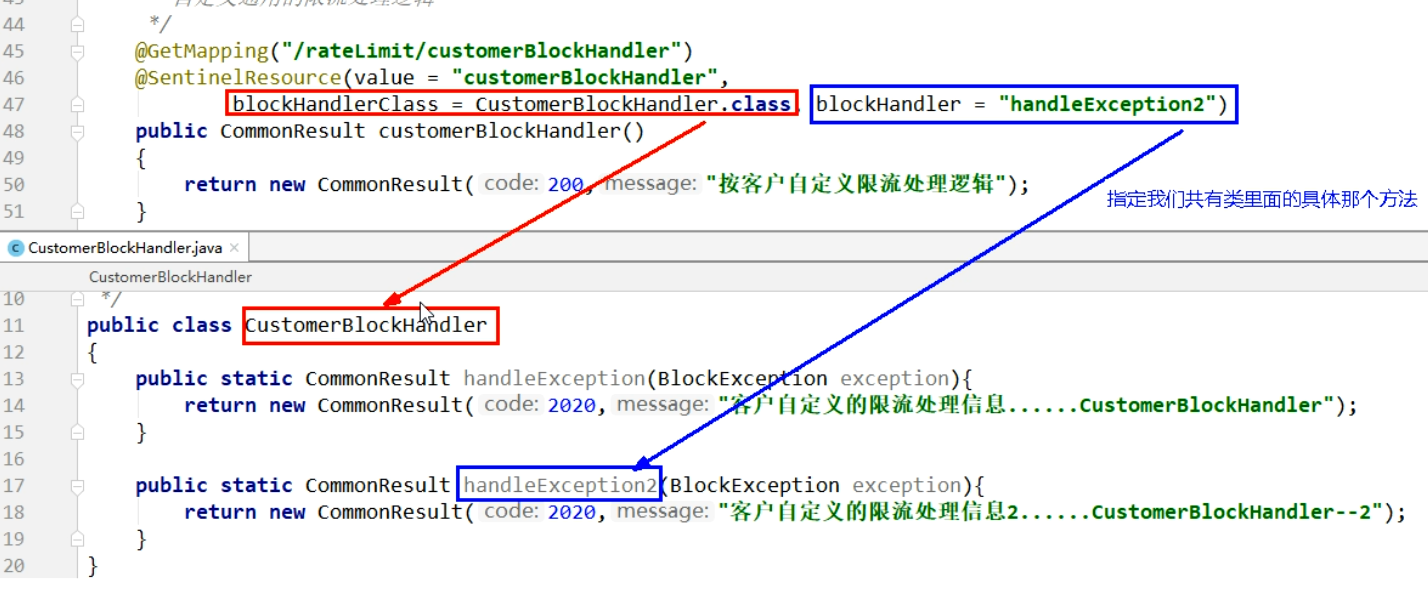

进一步说明

2. 服务熔断功能

2.1 sentinel整合ribbon+openFeign+fallback

2.2 Ribbon系列

2.2.1 启动nacos和sentinel
2.2.2 提供者9003/9004

pom.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
<dependencies>
    <!--SpringCloud ailibaba nacos -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <dependency><!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
        <groupId>com.atguigu.springcloud</groupId>
        <artifactId>cloud-api-commons</artifactId>
        <version>${project.version}</version>
    </dependency>
    <!-- SpringBoot整合Web组件 -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--日常通用jar包配置-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

application.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
server:
  port: 9003

spring:
  application:
    name: nacos-payment-provider
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #配置Nacos地址

management:
  endpoints:
    web:
      exposure:
        include: '*'

主启动类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
package com.atguigu.springcloud.alibaba;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;


@SpringBootApplication
@EnableDiscoveryClient
public class PaymentMain9003
{
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain9003.class, args);
    }
}

业务类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package com.atguigu.springcloud.alibaba.controller;


import com.atguigu.springcloud.alibaba.entities.CommonResult;
import com.atguigu.springcloud.alibaba.entities.Payment;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;


@RestController
public class PaymentController
{
    @Value("${server.port}")
    private String serverPort;

    public static HashMap<Long, Payment> hashMap = new HashMap<>();
    static{
        hashMap.put(1L,new Payment(1L,"28a8c1e3bc2742d8848569891fb42181"));
        hashMap.put(2L,new Payment(2L,"bba8c1e3bc2742d8848569891ac32182"));
        hashMap.put(3L,new Payment(3L,"6ua8c1e3bc2742d8848569891xt92183"));
    }

    @GetMapping(value = "/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id){
        Payment payment = hashMap.get(id);
        CommonResult<Payment> result = new CommonResult(200,"from mysql,serverPort:  "+serverPort,payment);
        return result;
    }
}

测试地址：http://localhost:9003/paymentSQL/1

2.2.3 消费者84

新建cloudalibaba-consumer-nacos-order84

pom.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloudalibaba-consumer-nacos-order84</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>


</project>

application.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
server:
  port: 84


spring:
  application:
    name: nacos-order-consumer
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:
        dashboard: localhost:8080
        port: 8719

service-url:
  nacos-user-service: http://nacos-payment-provider

主启动

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package com.atguigu.springcloud.alibaba;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;


@EnableDiscoveryClient
@SpringBootApplication
@EnableFeignClients
public class OrderNacosMain84
{
    public static void main(String[] args) {
        SpringApplication.run(OrderNacosMain84.class, args);
    }
}

业务类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
package com.atguigu.springcloud.alibaba.controller;

import com.alibaba.csp.sentinel.annotation.SentinelResource;
import com.alibaba.csp.sentinel.slots.block.BlockException;
import com.atguigu.springcloud.alibaba.entities.CommonResult;
import com.atguigu.springcloud.alibaba.entities.Payment;
import com.atguigu.springcloud.alibaba.service.PaymentService;

import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;


@RestController
@Slf4j
public class CircleBreakerController {

    public static final String SERVICE_URL = "http://nacos-payment-provider";

    @Resource
    private RestTemplate restTemplate;



    @RequestMapping("/consumer/fallback/{id}")
    //@SentinelResource(value = "fallback") //没有配置
    //@SentinelResource(value = "fallback",fallback = "handlerFallback") //fallback只负责业务异常
    //@SentinelResource(value = "fallback",blockHandler = "blockHandler") //blockHandler只负责sentinel控制台配置违规
    @SentinelResource(value = "fallback",fallback = "handlerFallback",blockHandler = "blockHandler",
            exceptionsToIgnore = {IllegalArgumentException.class})
    public CommonResult<Payment> fallback(@PathVariable Long id) {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }

    //fallback
    public CommonResult handlerFallback(@PathVariable  Long id,Throwable e) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(444,"兜底异常handlerFallback,exception内容  "+e.getMessage(),payment);
    }

    //blockHandler
    public CommonResult blockHandler(@PathVariable  Long id,BlockException blockException) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(445,"blockHandler-sentinel限流,无此流水: blockException  "+blockException.getMessage(),payment);
    }


}

没有任何配置

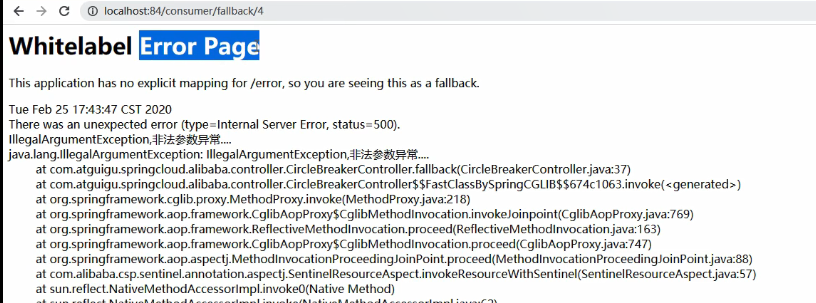

给客户error页面，不友好

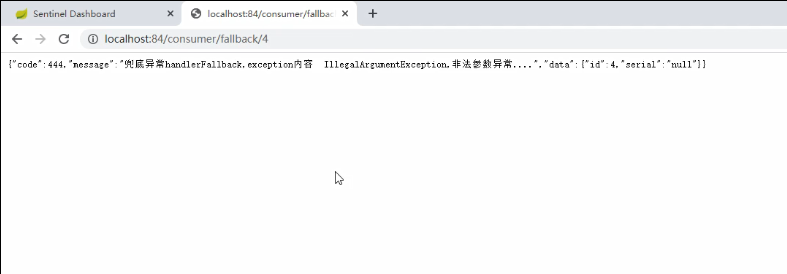

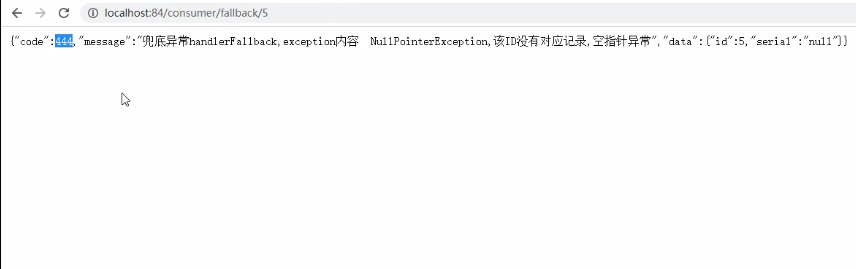

只配置fallback

1
@SentinelResource(value = "fallback",fallback ="handlerFallback")

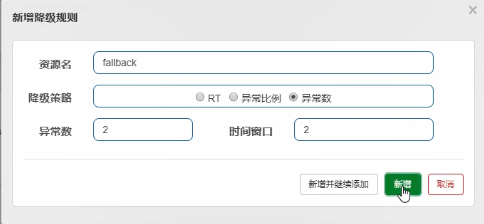

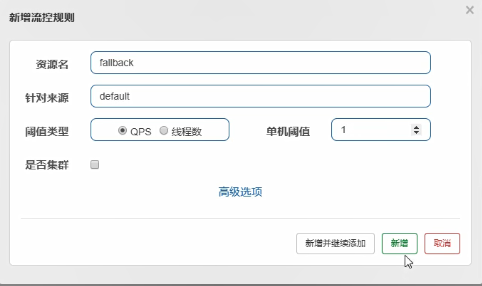

只配置blockHandler

1
@SentinelResource(value = "fallback",blockHandler = "blockHandler")

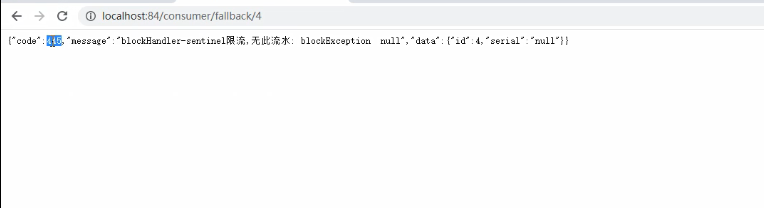

第一次点击时

快速点击时

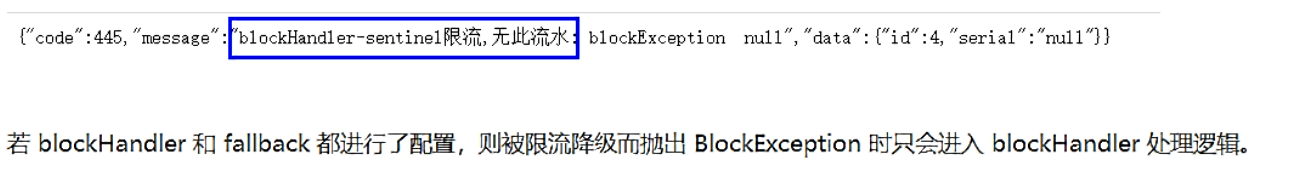

fallback和blockHandler都配置

2.3 Feign系列

修改84模块

pom.xml

1
2
3
4
5
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>

application.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
server:
  port: 84


spring:
  application:
    name: nacos-order-consumer
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:
        dashboard: localhost:8080
        port: 8719




service-url:
  nacos-user-service: http://nacos-payment-provider

#对Feign的支持
feign:
  sentinel:
    enabled: true

主启动类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
添加@EnableFeignClients启动Feign的功能
package com.atguigu.springcloud.alibaba;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;


@EnableDiscoveryClient
@SpringBootApplication
@EnableFeignClients
public class OrderNacosMain84
{
    public static void main(String[] args) {
        SpringApplication.run(OrderNacosMain84.class, args);
    }
}

业务类

带@FeignClient注解的业务接口

fallback = PaymentFallbackService.class

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package com.atguigu.springcloud.alibaba.service;


import com.atguigu.springcloud.alibaba.entities.CommonResult;
import com.atguigu.springcloud.alibaba.entities.Payment;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;


@FeignClient(value = "nacos-payment-provider",fallback = PaymentFallbackService.class)
public interface PaymentService
{
    @GetMapping(value = "/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id);
}
PaymentFallbackService实现类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
package com.atguigu.springcloud.alibaba.service;


import com.atguigu.springcloud.alibaba.entities.CommonResult;
import com.atguigu.springcloud.alibaba.entities.Payment;
import org.springframework.stereotype.Component;


@Component
public class PaymentFallbackService implements PaymentService
{
    @Override
    public CommonResult<Payment> paymentSQL(Long id)
    {
        return new CommonResult<>(44444,"服务降级返回,---PaymentFallbackService",new Payment(id,"errorSerial"));
    }
}
Controller
1
2
3
4
5
6
7
8
// OpenFeign
@Resource
private PaymentService paymentService;

@GetMapping(value = "/consumer/paymentSQL/{id}")
public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id) {
    return paymentService.paymentSQL(id);
}

测试84调用9003，此时故意关闭9003微服务提供者，看84消费侧自动降级，不会被耗死

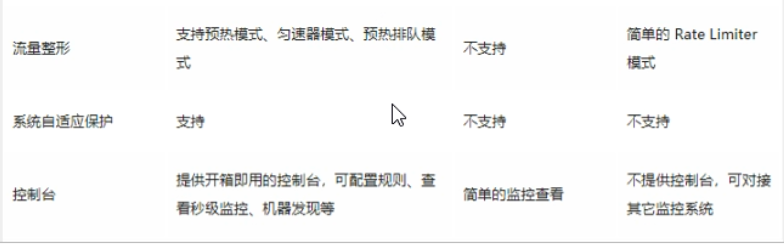

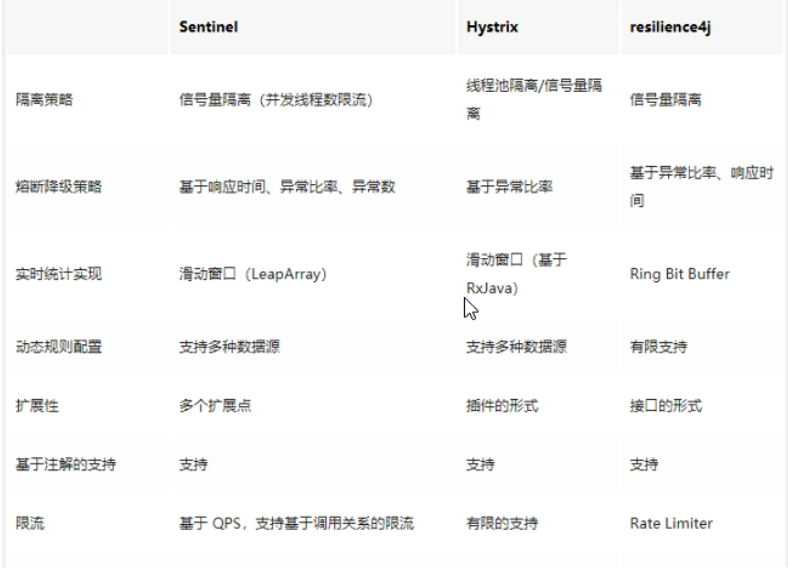

2.4 熔断框架比较


3. 规则持久化

是什么

一旦我们重启应用，Sentinel规则将消失，生产环境需要将配置规则进行持久化

怎么玩

将限流配置规则持久化进Nacos保存，只要刷新8401某个rest地址，sentinel控制台的流控规则就能看到，只要Nacos里面的配置不删除，针对8401上Sentinel上的流控规则持续有效

3.1步骤

修改cloudalibaba-sentinel-service8401

pom.xml

1
2
3
4
5
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
</dependency>

添加Nacos数据源配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

server:
  port: 8401

spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #Nacos服务注册中心地址
    sentinel:
      transport:
        dashboard: localhost:8080 #配置Sentinel dashboard地址
        port: 8719
      datasource:
        ds1:
          nacos:
            server-addr: localhost:8848
            dataId: cloudalibaba-sentinel-service
            groupId: DEFAULT_GROUP
            data-type: json
            rule-type: flow

management:
  endpoints:
    web:
      exposure:
        include: '*'

feign:
  sentinel:
    enabled: true # 激活Sentinel对Feign的支持

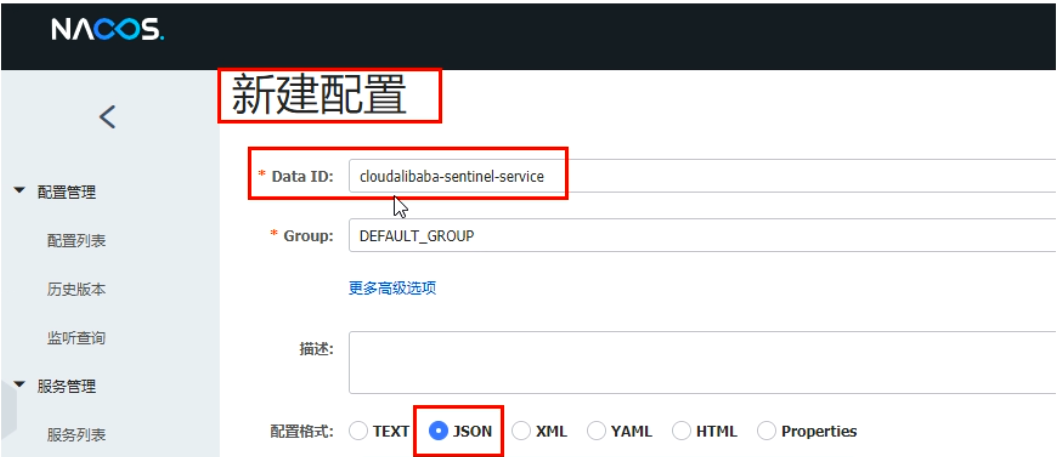

** 添加Nacos业务规则配置**

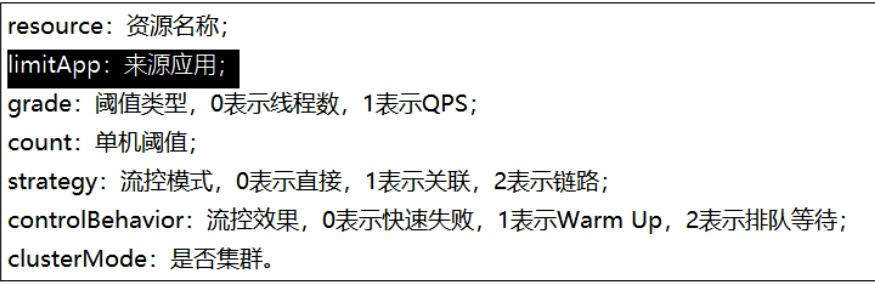

内容解析

1
2
3
4
5
6
7
8
9
10
11
12
[
    {
         "resource": "/retaLimit/byUrl",
         "limitApp": "default",
         "grade":   1,
         "count":   1,
         "strategy": 0,
         "controlBehavior": 0,
         "clusterMode": false
    }
]

启动8401后刷新sentinel发现业务规则有了

**快速访问测试接口:**http://localhost:8401/rateLimit/byUrl

停止8401再看sentinel

重新启动8401再看sentinel
