微信登录

一、准备工作

https://open.weixin.qq.com

• 1、注册
• 2、邮箱激活

这是微信开放平台 不能和微信公众平台用一个邮箱号

• 3、完善开发者资料
• 4、开发者资质认证

准备营业执照，1-2个工作日审批、300元

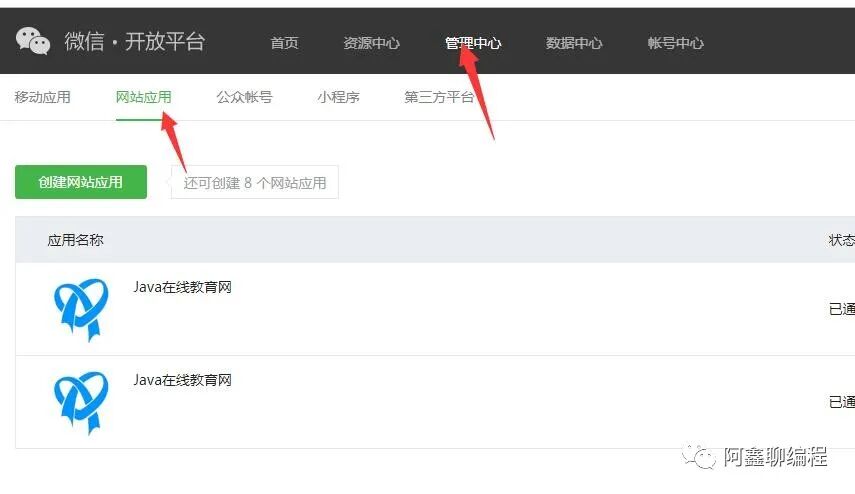

• 5、创建网站应用

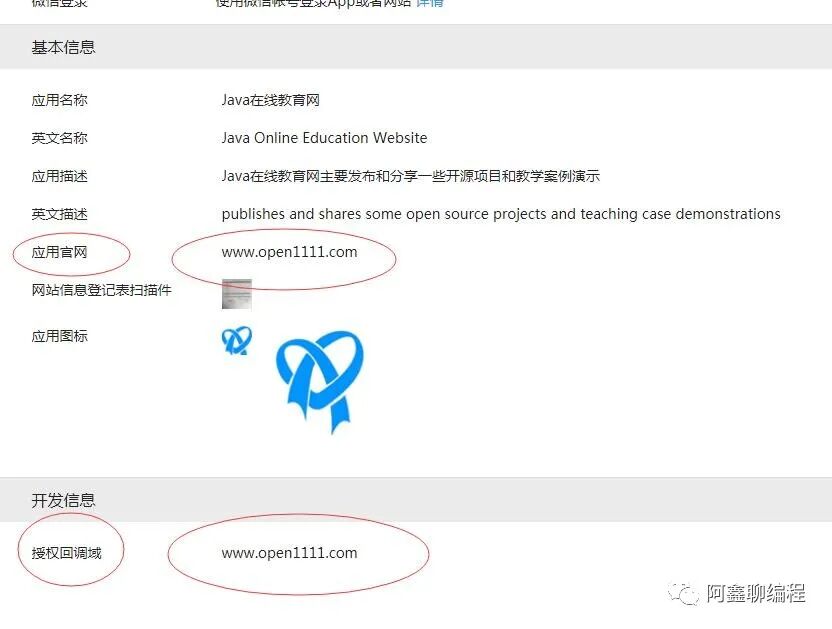

（这个我是没办法认证，所以也没截图了，下面放的是博客 blog.java1234.com中的图片哦，我是后面用的别的方法跳转到本地的….）

提交审核，7个工作日审批（其实和QQ认证差不多的，看这个之前还是先看看我手摸手带兄弟们写的QQ第三方的登录）

• 6、熟悉微信登录流程

参考文档：https://open.weixin.qq.com/cgi-bin/showdocument?action=dir_list&t=resource/res_list&verify=1&id=open1419316505&token=e547653f995d8f402704d5cb2945177dc8aa4e7e&lang=zh_CN

二、后端开发（开发授权Url）

1、添加配置

application.properties添加相关配置信息

# 这里用的  尚硅谷 项目实战中的appid和app_secret
# 不得不为尚硅谷打波广告了  有了尚硅谷 学习不在苦.....
# 这个redirect_url会直接重定向到本地localhost:8150/api/ucenter/wx/callback
# 所以后期项目必须端口号为8150  扫码登录重定向地址为/api/ucenter/wx/callback处理回调逻辑
# 譬如：保存微信返回的各种信息 以及页面跳转路地址（一般里面重定向到首页）

# 微信开放平台 appid
wx.open.app_id=wxed9954c01bb89b47
# 微信开放平台 appsecret
wx.open.app_secret=a7482517235173ddb4083788de60b90e
# 微信开放平台 重定向url
wx.open.redirect_url=http://guli.shop/api/ucenter/wx/callback

2、创建常量类

创建util包，创建ConstantPropertiesUtil.java常量类

import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class ConstantPropertiesUtil implements InitializingBean {

    @Value("${wx.open.app_id}")
    private String appId;

    @Value("${wx.open.app_secret}")
    private String appSecret;

    @Value("${wx.open.redirect_url}")
    private String redirectUrl;

    public static String WX_OPEN_APP_ID;
    public static String WX_OPEN_APP_SECRET;
    public static String WX_OPEN_REDIRECT_URL;

    @Override
    public void afterPropertiesSet() throws Exception {
        WX_OPEN_APP_ID = appId;
        WX_OPEN_APP_SECRET = appSecret;
        WX_OPEN_REDIRECT_URL = redirectUrl;
    }
}

3、创建controller

guli-microservice-ucenter微服务中创建api包

api包中创建WxApiController

@CrossOrigin
@Controller  //只是请求地址，不需要返回数据
@RequestMapping("/api/ucenter/wx")
public class WxApiController {

    //1 生成微信扫描二维码
    @GetMapping("login")
    public String getWxCode() {
        //固定地址，后面拼接参数
//        String url = "https://open.weixin.qq.com/" +
//                "connect/qrconnect?appid="+ ConstantWxUtils.WX_OPEN_APP_ID+"&response_type=code";

        // 微信开放平台授权baseUrl  %s相当于?代表占位符
        String baseUrl = "https://open.weixin.qq.com/connect/qrconnect" +
                "?appid=%s" +
                "&redirect_uri=%s" +
                "&response_type=code" +
                "&scope=snsapi_login" +
                "&state=%s" +
                "#wechat_redirect";

        //对redirect_url进行URLEncoder编码
        String redirectUrl = ConstantPropertiesUtil.WX_OPEN_REDIRECT_URL;
        try {
            redirectUrl = URLEncoder.encode(redirectUrl, "utf-8");
        }catch(Exception e) {
        }

        //设置%s里面值
        String url = String.format(
                baseUrl,
                ConstantPropertiesUtil.WX_OPEN_APP_ID,
                redirectUrl,
                "atguigu"
        );

        //重定向到请求微信地址里面
        return "redirect:"+url;
    }
}

此时只是能跳转到二维码页面！！！然后扫码之后回调还没写

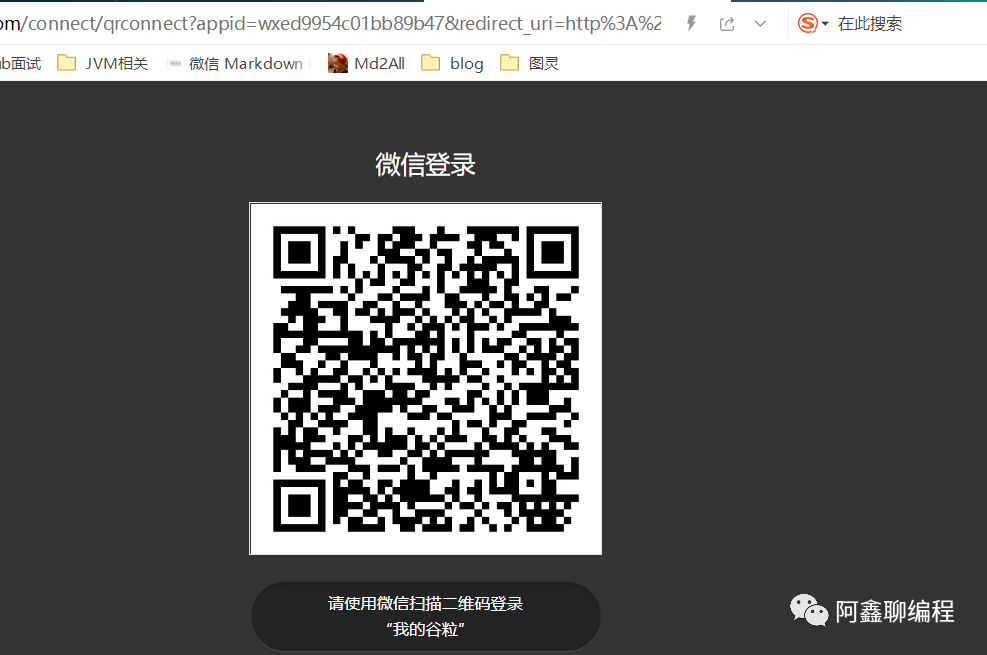

先测试一波

授权url参数说明

参数	是否必须	说明
appid	是	应用唯一标识
redirect_uri	是	请使用urlEncode对链接进行处理
response_type	是	填code
scope	是	应用授权作用域，拥有多个作用域用逗号（,）分隔，网页应用目前仅填写snsapi_login即
state	否	用于保持请求和回调的状态，授权请求后原样带回给第三方。该参数可用于防止csrf攻击（跨站请求伪造攻击），建议第三方带上该参数，可设置为简单的随机数加session进行校验

4、测试

访问：

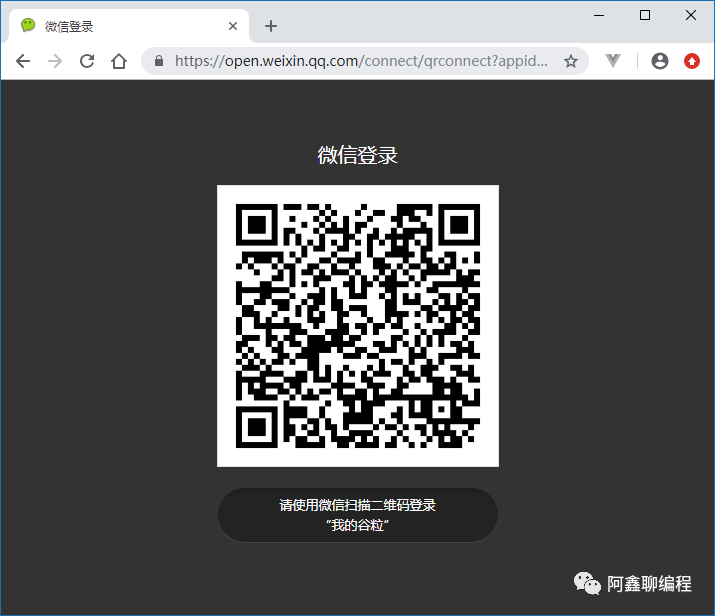

访问授权url后会得到一个微信登录二维码

用户扫描二维码会看到确认登录的页面

用户点击“确认登录”后，微信服务器会向谷粒学院的业务服务器发起回调，因此接下来我们需要开发回调controller

注意：如果没有正确的配置业务服务器的回调url，则会看到以下错误提示

三、开发回调Url

1、导入Pom.xml

<!--httpclient-->
<dependency>
    <groupId>org.apache.httpcomponents</groupId>
    <artifactId>httpclient</artifactId>
    <version>4.5.1</version>
</dependency>
<!--commons-io-->
<dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.6</version>
</dependency>
<!--gson-->
<dependency>
    <groupId>com.google.code.gson</groupId>
    <artifactId>gson</artifactId>
    <version>2.8.2</version>
</dependency>

2、创建httpclient工具类

放入util包 HttpClientUtils.java

package com.atguigu.educenter.utils;

import org.apache.commons.io.IOUtils;
import org.apache.commons.lang.StringUtils;
import org.apache.http.Consts;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.HttpClient;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.config.RequestConfig.Builder;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.conn.ConnectTimeoutException;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.SSLContextBuilder;
import org.apache.http.conn.ssl.TrustStrategy;
import org.apache.http.conn.ssl.X509HostnameVerifier;
import org.apache.http.entity.ContentType;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.message.BasicNameValuePair;

import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLException;
import javax.net.ssl.SSLSession;
import javax.net.ssl.SSLSocket;
import java.io.IOException;
import java.net.SocketTimeoutException;
import java.security.GeneralSecurityException;
import java.security.cert.CertificateException;
import java.security.cert.X509Certificate;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.Map.Entry;
import java.util.Set;

/**
 *  依赖的jar包有：commons-lang-2.6.jar、httpclient-4.3.2.jar、httpcore-4.3.1.jar、commons-io-2.4.jar
 * @author zhaoyb
 *
 */
public class HttpClientUtils {

    public static final int connTimeout=10000;
    public static final int readTimeout=10000;
    public static final String charset="UTF-8";
    private static HttpClient client = null;

    static {
        PoolingHttpClientConnectionManager cm = new PoolingHttpClientConnectionManager();
        cm.setMaxTotal(128);
        cm.setDefaultMaxPerRoute(128);
        client = HttpClients.custom().setConnectionManager(cm).build();
    }

    public static String postParameters(String url, String parameterStr) throws ConnectTimeoutException, SocketTimeoutException, Exception{
        return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);
    }

    public static String postParameters(String url, String parameterStr,String charset, Integer connTimeout, Integer readTimeout) throws ConnectTimeoutException, SocketTimeoutException, Exception{
        return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);
    }

    public static String postParameters(String url, Map<String, String> params) throws ConnectTimeoutException,
            SocketTimeoutException, Exception {
        return postForm(url, params, null, connTimeout, readTimeout);
    }

    public static String postParameters(String url, Map<String, String> params, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,
            SocketTimeoutException, Exception {
        return postForm(url, params, null, connTimeout, readTimeout);
    }

    public static String get(String url) throws Exception {
        return get(url, charset, null, null);
    }

    public static String get(String url, String charset) throws Exception {
        return get(url, charset, connTimeout, readTimeout);
    }

    /**
     * 发送一个 Post 请求, 使用指定的字符集编码.
     *
     * @param url
     * @param body RequestBody
     * @param mimeType 例如 application/xml "application/x-www-form-urlencoded" a=1&b=2&c=3
     * @param charset 编码
     * @param connTimeout 建立链接超时时间,毫秒.
     * @param readTimeout 响应超时时间,毫秒.
     * @return ResponseBody, 使用指定的字符集编码.
     * @throws ConnectTimeoutException 建立链接超时异常
     * @throws SocketTimeoutException  响应超时
     * @throws Exception
     */
    public static String post(String url, String body, String mimeType,String charset, Integer connTimeout, Integer readTimeout)
            throws ConnectTimeoutException, SocketTimeoutException, Exception {
        HttpClient client = null;
        HttpPost post = new HttpPost(url);
        String result = "";
        try {
            if (StringUtils.isNotBlank(body)) {
                HttpEntity entity = new StringEntity(body, ContentType.create(mimeType, charset));
                post.setEntity(entity);
            }
            // 设置参数
            Builder customReqConf = RequestConfig.custom();
            if (connTimeout != null) {
                customReqConf.setConnectTimeout(connTimeout);
            }
            if (readTimeout != null) {
                customReqConf.setSocketTimeout(readTimeout);
            }
            post.setConfig(customReqConf.build());

            HttpResponse res;
            if (url.startsWith("https")) {
                // 执行 Https 请求.
                client = createSSLInsecureClient();
                res = client.execute(post);
            } else {
                // 执行 Http 请求.
                client = HttpClientUtils.client;
                res = client.execute(post);
            }
            result = IOUtils.toString(res.getEntity().getContent(), charset);
        } finally {
            post.releaseConnection();
            if (url.startsWith("https") && client != null&& client instanceof CloseableHttpClient) {
                ((CloseableHttpClient) client).close();
            }
        }
        return result;
    }


    /**
     * 提交form表单
     *
     * @param url
     * @param params
     * @param connTimeout
     * @param readTimeout
     * @return
     * @throws ConnectTimeoutException
     * @throws SocketTimeoutException
     * @throws Exception
     */
    public static String postForm(String url, Map<String, String> params, Map<String, String> headers, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,
            SocketTimeoutException, Exception {

        HttpClient client = null;
        HttpPost post = new HttpPost(url);
        try {
            if (params != null && !params.isEmpty()) {
                List<NameValuePair> formParams = new ArrayList<NameValuePair>();
                Set<Entry<String, String>> entrySet = params.entrySet();
                for (Entry<String, String> entry : entrySet) {
                    formParams.add(new BasicNameValuePair(entry.getKey(), entry.getValue()));
                }
                UrlEncodedFormEntity entity = new UrlEncodedFormEntity(formParams, Consts.UTF_8);
                post.setEntity(entity);
            }

            if (headers != null && !headers.isEmpty()) {
                for (Entry<String, String> entry : headers.entrySet()) {
                    post.addHeader(entry.getKey(), entry.getValue());
                }
            }
            // 设置参数
            Builder customReqConf = RequestConfig.custom();
            if (connTimeout != null) {
                customReqConf.setConnectTimeout(connTimeout);
            }
            if (readTimeout != null) {
                customReqConf.setSocketTimeout(readTimeout);
            }
            post.setConfig(customReqConf.build());
            HttpResponse res = null;
            if (url.startsWith("https")) {
                // 执行 Https 请求.
                client = createSSLInsecureClient();
                res = client.execute(post);
            } else {
                // 执行 Http 请求.
                client = HttpClientUtils.client;
                res = client.execute(post);
            }
            return IOUtils.toString(res.getEntity().getContent(), "UTF-8");
        } finally {
            post.releaseConnection();
            if (url.startsWith("https") && client != null
                    && client instanceof CloseableHttpClient) {
                ((CloseableHttpClient) client).close();
            }
        }
    }




    /**
     * 发送一个 GET 请求
     *
     * @param url
     * @param charset
     * @param connTimeout  建立链接超时时间,毫秒.
     * @param readTimeout  响应超时时间,毫秒.
     * @return
     * @throws ConnectTimeoutException   建立链接超时
     * @throws SocketTimeoutException   响应超时
     * @throws Exception
     */
    public static String get(String url, String charset, Integer connTimeout,Integer readTimeout)
            throws ConnectTimeoutException,SocketTimeoutException, Exception {

        HttpClient client = null;
        HttpGet get = new HttpGet(url);
        String result = "";
        try {
            // 设置参数
            Builder customReqConf = RequestConfig.custom();
            if (connTimeout != null) {
                customReqConf.setConnectTimeout(connTimeout);
            }
            if (readTimeout != null) {
                customReqConf.setSocketTimeout(readTimeout);
            }
            get.setConfig(customReqConf.build());

            HttpResponse res = null;

            if (url.startsWith("https")) {
                // 执行 Https 请求.
                client = createSSLInsecureClient();
                res = client.execute(get);
            } else {
                // 执行 Http 请求.
                client = HttpClientUtils.client;
                res = client.execute(get);
            }

            result = IOUtils.toString(res.getEntity().getContent(), charset);
        } finally {
            get.releaseConnection();
            if (url.startsWith("https") && client != null && client instanceof CloseableHttpClient) {
                ((CloseableHttpClient) client).close();
            }
        }
        return result;
    }


    /**
     * 从 response 里获取 charset
     *
     * @param ressponse
     * @return
     */
    @SuppressWarnings("unused")
    private static String getCharsetFromResponse(HttpResponse ressponse) {
        // Content-Type:text/html; charset=GBK
        if (ressponse.getEntity() != null  && ressponse.getEntity().getContentType() != null && ressponse.getEntity().getContentType().getValue() != null) {
            String contentType = ressponse.getEntity().getContentType().getValue();
            if (contentType.contains("charset=")) {
                return contentType.substring(contentType.indexOf("charset=") + 8);
            }
        }
        return null;
    }



    /**
     * 创建 SSL连接
     * @return
     * @throws GeneralSecurityException
     */
    private static CloseableHttpClient createSSLInsecureClient() throws GeneralSecurityException {
        try {
            SSLContext sslContext = new SSLContextBuilder().loadTrustMaterial(null, new TrustStrategy() {
                public boolean isTrusted(X509Certificate[] chain,String authType) throws CertificateException {
                    return true;
                }
            }).build();

            SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(sslContext, new X509HostnameVerifier() {

                @Override
                public boolean verify(String arg0, SSLSession arg1) {
                    return true;
                }

                @Override
                public void verify(String host, SSLSocket ssl)
                        throws IOException {
                }

                @Override
                public void verify(String host, X509Certificate cert)
                        throws SSLException {
                }

                @Override
                public void verify(String host, String[] cns,
                                   String[] subjectAlts) throws SSLException {
                }

            });

            return HttpClients.custom().setSSLSocketFactory(sslsf).build();

        } catch (GeneralSecurityException e) {
            throw e;
        }
    }

    public static void main(String[] args) {
        try {
            String str= post("https://localhost:443/ssl/test.shtml","name=12&page=34","application/x-www-form-urlencoded", "UTF-8", 10000, 10000);
            //String str= get("https://localhost:443/ssl/test.shtml?name=12&page=34","GBK");
            /*Map<String,String> map = new HashMap<String,String>();
            map.put("name", "111");
            map.put("page", "222");
            String str= postForm("https://localhost:443/ssl/test.shtml",map,null, 10000, 10000);*/
            System.out.println(str);
        } catch (ConnectTimeoutException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (SocketTimeoutException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (Exception e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }

}

3、创建回调controller方法

先写个实体类可以封装一波返回的数据（数据库自己创建）

放入entity包 Member.java

@Data
@EqualsAndHashCode(callSuper = false)
@Accessors(chain = true)
@TableName("ucenter_member")
@ApiModel(value="Member对象", description="会员表")
public class Member implements Serializable {

    private static final long serialVersionUID = 1L;

    @ApiModelProperty(value = "会员id")
    @TableId(value = "id", type = IdType.ID_WORKER_STR)
    private String id;

    @ApiModelProperty(value = "微信openid")
    private String openid;

    @ApiModelProperty(value = "手机号")
    private String mobile;

    @ApiModelProperty(value = "密码")
    private String password;

    @ApiModelProperty(value = "昵称")
    private String nickname;

    @ApiModelProperty(value = "性别 1 女，2 男")
    private Integer sex;

    @ApiModelProperty(value = "年龄")
    private Integer age;

    @ApiModelProperty(value = "用户头像")
    private String avatar;

    @ApiModelProperty(value = "用户签名")
    private String sign;

    @ApiModelProperty(value = "是否禁用 1（true）已禁用，  0（false）未禁用")
    private Boolean isDisabled;

    @ApiModelProperty(value = "逻辑删除 1（true）已删除， 0（false）未删除")
    private Boolean isDeleted;

    @ApiModelProperty(value = "创建时间")
    private Date gmtCreate;

    @ApiModelProperty(value = "更新时间")
    private Date gmtModified;


}

在WxApiController.java中添加如下方法

根据业务自己修改一下代码！！！ 这里查询了数据库先判断是否存在

@CrossOrigin
@Controller  //只是请求地址，不需要返回数据
@RequestMapping("/api/ucenter/wx")
public class WxApiController {


    @Autowired
    private UcenterMemberService memberService;

    //2 获取扫描人信息，添加数据
    @GetMapping("callback")
    public String callback(String code, String state) {
        try {
            //1 获取code值，临时票据，类似于验证码
            //2 拿着code请求 微信固定的地址，得到两个值 accsess_token 和 openid
            String baseAccessTokenUrl = "https://api.weixin.qq.com/sns/oauth2/access_token" +
                    "?appid=%s" +
                    "&secret=%s" +
                    "&code=%s" +
                    "&grant_type=authorization_code";
            //拼接三个参数 ：id  秘钥 和 code值
            String accessTokenUrl = String.format(
                    baseAccessTokenUrl,
                    ConstantPropertiesUtil.WX_OPEN_APP_ID,
                    ConstantPropertiesUtil.WX_OPEN_APP_SECRET,
                    code
            );
            //请求这个拼接好的地址，得到返回两个值 accsess_token 和 openid
            //使用httpclient发送请求，得到返回结果
            String accessTokenInfo = HttpClientUtils.get(accessTokenUrl);

            //从accessTokenInfo字符串获取出来两个值 accsess_token 和 openid
            //把accessTokenInfo字符串转换map集合，根据map里面key获取对应值
            //使用json转换工具 Gson
            Gson gson = new Gson();
            HashMap mapAccessToken = gson.fromJson(accessTokenInfo, HashMap.class);
            String access_token = (String)mapAccessToken.get("access_token");
            String openid = (String)mapAccessToken.get("openid");

            //把扫描人信息添加数据库里面
            //判断数据表里面是否存在相同微信信息，根据openid判断
          //  UcenterMember member = memberService.getOpenIdMember(openid);
            if(member == null) {//memeber是空，表没有相同微信数据，进行添加

                //3 拿着得到accsess_token 和 openid，再去请求微信提供固定的地址，获取到扫描人信息
                //访问微信的资源服务器，获取用户信息
                String baseUserInfoUrl = "https://api.weixin.qq.com/sns/userinfo" +
                        "?access_token=%s" +
                        "&openid=%s";
                //拼接两个参数
                String userInfoUrl = String.format(
                        baseUserInfoUrl,
                        access_token,
                        openid
                );
                //发送请求
                String userInfo = HttpClientUtils.get(userInfoUrl);
                //获取返回userinfo字符串扫描人信息
                HashMap userInfoMap = gson.fromJson(userInfo, HashMap.class);
                String nickname = (String)userInfoMap.get("nickname");//昵称
                String headimgurl = (String)userInfoMap.get("headimgurl");//头像

                member = new UcenterMember();
                member.setOpenid(openid);
                member.setNickname(nickname);
                member.setAvatar(headimgurl);
                memberService.save(member);
            }

            //使用jwt根据member对象生成token字符串
            //String jwtToken = JwtUtils.getJwtToken(member.getId(), member.getNickname());
            //最后：返回首页面，通过路径传递token字符串
            //return "redirect:http://localhost:3000?token="+jwtToken;

            ModelAndView mav=new ModelAndView();
            mav.setViewName("main");
            mav.addObject("userInfo",userInfoMap);
            return mav;
        }catch(Exception e) {
            throw new GuliException(20001,"登录失败");
        }
    }
}
#调用微信返回的Map集合数据

{country=CN, unionid=oWgGz1HEMl_CRcZEyAk3ya2t0UIY, province=Heilongjiang, city=Daqing, openid=o3_SC52OZg94V0voGcDDn0Xi1irI, sex=1.0, nickname=我叫阿鑫, headimgurl=http://thirdwx.qlogo.cn/mmopen/vi_32/22rFMVYtn31Znsf38d954iaboeSQaMGj9OuE6ffpc3u1RsrPKfzumrVaIE9GqApWW4iamMV1IZnicnBVwxNrWbEsw/132, language=zh_CN, privilege=[]}

4、整合前端测试一波

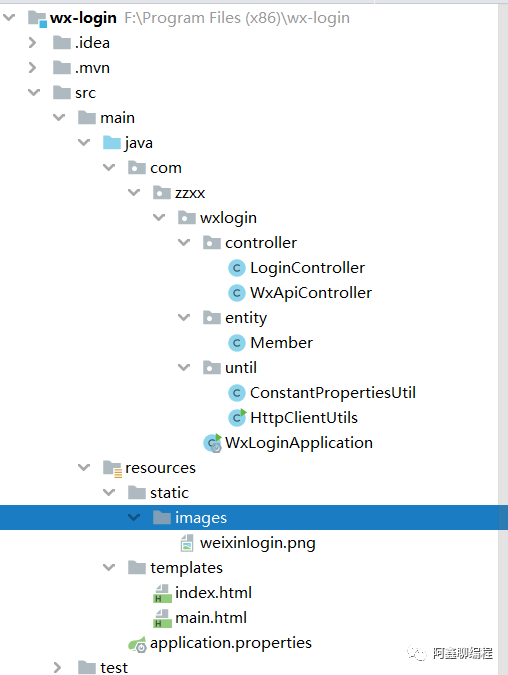

项目结构

index.html

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
 <title th:text="${title}"></title>
    <title>AAAAAAAAAA</title>
</head>
<body>
<div >
    <font color="black"><strong>微信扫码登录测试</strong></font><br/><br/>
    <a href="/api/ucenter/wx/login"><img src="/images/weixinlogin.png"/></a>
</div>
</body>

LoginController.java

@Controller
public class LoginController {

    @RequestMapping("/")
    public String root(Model model){
       model.addAttribute("title","zzxxx");
       model.addAttribute("zzz","dwadw1111111111111111ad");
        return "index";
    }

}

点击微信账号登录

main.html

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.w3.org/1999/xhtml">
<head>
    <meta charset="UTF-8">
    <title>主页</title>
</head>
<body>
<div>
    <P>微信唯一OpenId:<font th:text="${userInfo.openid}"></font></P>
    <P>昵称:<font th:text="${userInfo.nickname}"></font></P>
    <P>性别:<font th:text="${userInfo.sex}"></font></P>
    <P>省份:<font th:text="${userInfo.province}"></font></P>
    <P>市区:<font th:text="${userInfo.city}"></font></P>
    <P><img th:src="${userInfo.headimgurl}"></P>
</div>
</body>
</html>

---

感谢尚硅谷提供的授权认证接口

兄弟们可以B站关注一波尚硅谷
